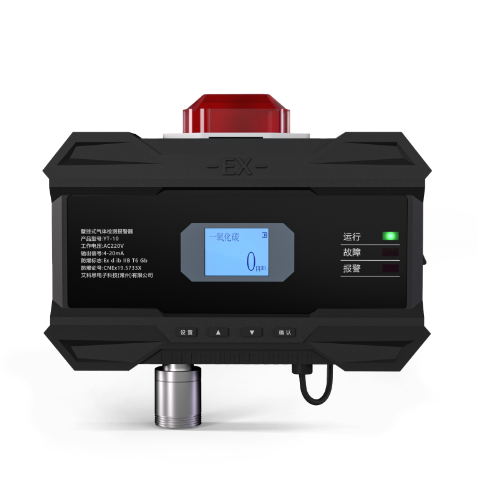

YT-10
壁/掛/式/氣/體/檢/測/報/警/器
高精度傳感器
高亮LCD屏
多重報警
小巧攜帶
壓鑄鋁更防爆
設備參數
| 測量氣體 | 默認為可燃氣 定制詳見下表"定制測量氣體及參數" |
| 供電電壓 | AC 220V |
| 輸出誤差 | ＜1%(4~20mA部分) |
| 工作環境 | 溫度:-10℃~55℃ 濕度:10~95%RH(無結露) |
| 響應時間 | ≤45秒(因氣體而異) |
| 大氣壓強 | 90~110KPa |
| 報警方式 | 聲、光報警 |
| 報警音量 | -75~95dB |
| 殼體材質 | 壓鑄鋁,防爆防腐蝕 |
| 產品尺寸 | 246*130*61mm |
| 產品重量 | 約1600g |
定制測量氣體及參數
| 檢測氣體 | 常規范圍 | 可選范圍 | 誤差 | 分辨率 | 低報警 | 高報警 |
| 氧氣 | 0~30%VOL | 0~30%VOL | <±3%FS | 0.1%VOL | 19.5 | 23.5 |
| 可燃 | 0~100%LEL | 0~100%LEL | <±3%FS | 1%LEL | 20 | 50 |
| 甲烷 | 0~4%VOL | 0~4%VOL | <±3%FS | 0.1%VOL | 20 | 50 |
| 一氧化碳 | 0~1000PPM | 0~2000/5000PPM | <±3%FS | 1PPM | 50 | 150 |
| 硫化氫 | 0~100PPM | 0~50/200/1000PPM | <±3%FS | 1/0.1PPM | 10 | 20 |
| 氨氣 | 0~100PPM | 0~50/500/1000PPM | <±3%FS | 1/0.1PPM | 20 | 50 |
| 氫氣 | 0~1000PPM | 0~40000PPM | <±3%FS | 1/0.1PPM | 200 | 500 |
| 氯氣 | 0~20PPM | 0~100/150PPM | <±3%FS | 1/0.1PPM | 5 | 10 |
| 氯化氫 | 0~20PPM | 0~20/150PPM | <±3%FS | 1/0.1PPM | 5 | 10 |
| 二氧化硫 | 0~20PPM | 0~50/100PPM | <±3%FS | 1/0.1PPM | 5 | 10 |
| 一氧化氮 | 0~250PPM | 0~500/1000PPM | <±3%FS | 1/0.1PPM | 50 | 125 |
| 二氧化氮 | 0~20PPM | 0~50PPM | <±3%FS | 1/0.1PPM | 5 | 10 |
| 二氧化碳 | 0~5000PPM | 0~5%/10%VOL(紅外) | <±3%FS | 1PPM/0.1VOL | 1000/0.2 | 2000/0.5 |
| 磷化氫 | 0~20PPM | 0~20PPM | <±3%FS | 1PPM | 5 | 10 |
| 氤化氫 | 0~50PPM | 0~50PPM | <±3%FS | 1PPM | 10 | 25 |
| 環氧乙烷 | 0~100PPM | 0~100PPM | <±3%FS | 1PPM | 20 | 50 |
| 臭氧 | 0~100PPM | 0~20/100PPM | <±3%FS | 0.1PPM | 20 | 50 |
| 甲醛 | 0~40PPM | 0~50/100PPM | <±3%FS | 1/0.1PPM | 8 | 20 |
| 苯 | 0~1000PPM | 0~1000PPM | <±3%FS | 1PPM | 200 | 500 |
| 甲苯 | 0~1000PPM | 0~1000PPM | <±3%FS | 1PPM | 200 | 500 |
| 二甲苯 | 0~1000PPM | 0~1000PPM | <±3%FS | 1PPM | 200 | 500 |
| VOC | 0~1000PPM | 0~1000PPM | <±3%FS | 1PPM | 200 | 500 |
| 氯乙烯 | 0~250PPM | 0~250PPM | <±3%FS | 1PPM | 50 | 125 |
| 甲醇 | 0~30PPM | 0~30PPM | <±3%FS | 1PPM | 6 | 15 |
| 異丁烯 | 0~90PPM | 0~90PPM | <±3%FS | 1PPM | 18 | 45 |
| 乙醇 | 0~80PPM | 0~80PPM | <±3%FS | 1PPM | 16 | 40 |
